 | ? Metal shell, fixed body with a cable inlet hole. ? meet a criterion CENELEC EN 50041、IEC 60947、EN 60204 ? Small and compact design, easy to use. |
▊Model specification
picture |  |  |  |  |  | |

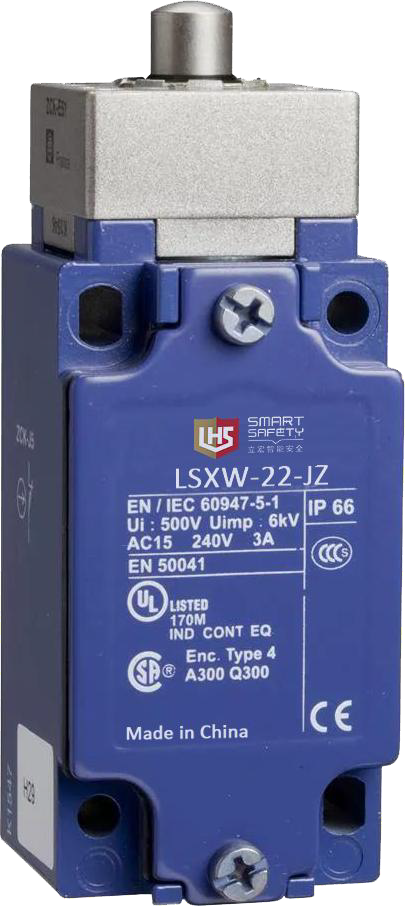

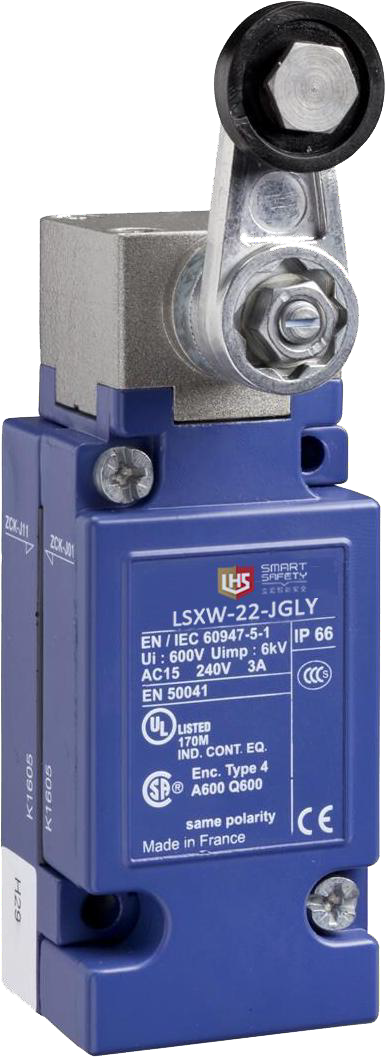

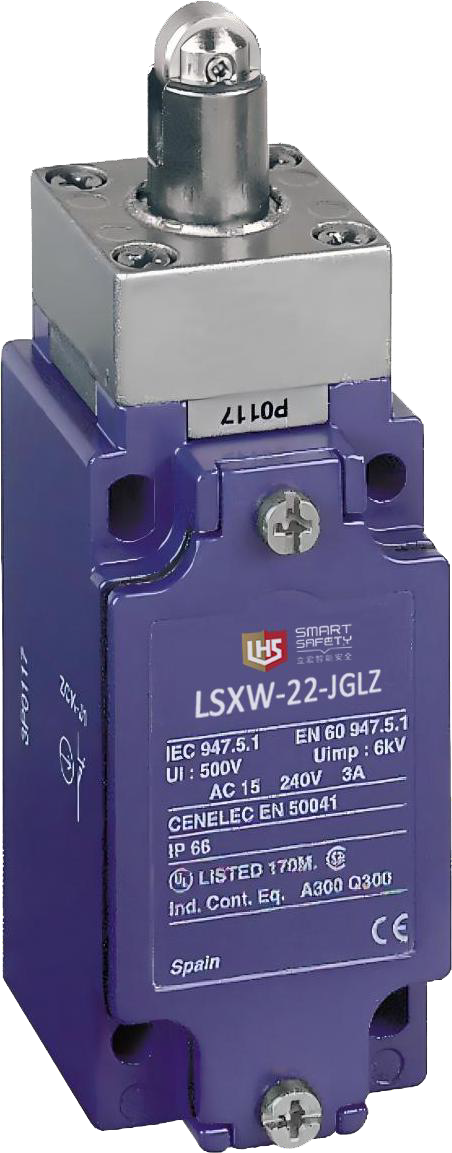

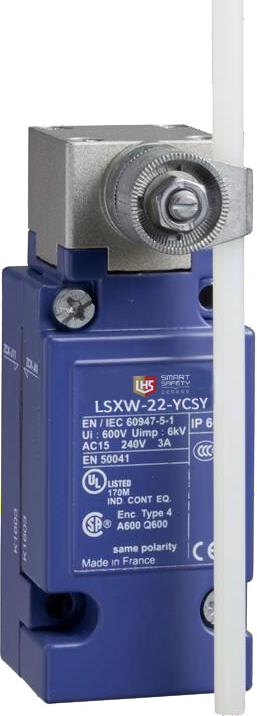

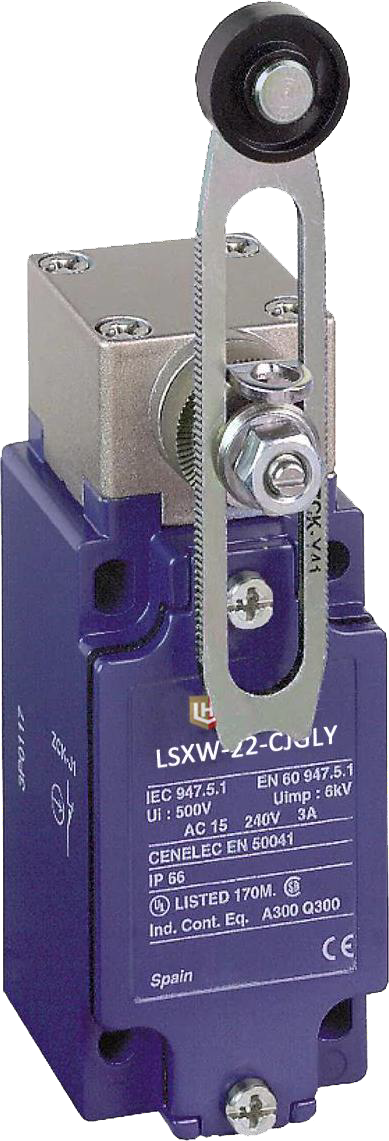

model | LSXW-22-JZ | LSXW-22-JGLZ | LSXW-22-JGLY | LSXW-22-CJGLY | LSXW-22-YCSY | |
Operating head | Direct-acting (body fixed) | Rocker type (fixed body) (The switch is factory set to be triggered in both directions.) | ||||
Operation head type | Metal direct-acting type | Steel roller direct-acting type | Steel roller rocker | Adjustable length Metal roller rocker | Circular metal rocker | |
Switch trigger | terminally | 30o凸沿 | Any moving part | |||
Trigger type |  |  |  |  |  | |
Maximum trigger speed | 0.5 m/s | 1 m/s | 1.5 m/s | |||
mechanical life (millions of operation cycles) | 30 | 25 | 30 | |||
Minimum force or moment | touch off | 20 N | 16 N | 0.25 N.m | ||
50 N | 40 N | 0.50 N.m | - | - | ||
Positive disconnection operation | ||||||
▊General characteristics
standard | product | IEC 60947-5-1，EN 60947-5-1，UL 508，CSA C22-2 n° 14 |
package | IEC 60204-1，EN 60204-1 | |
product certification | CE | |
Protection treatment | version | "TC" standard edition, "TH" special edition |
ambient temperature | run | Temperature:-25...+ 70°C, special components (-40 C or+120 C) can be selected for extreme temperature. |
store | Temperature:-40 ...+70 C. | |
Vibration resistance | Comply with IEC 60068-2-6 standard. | 25 gn (10...500 Hz) |
shock resistance | Comply with IEC 60068-2-27 standard. | 50 gn (11 ms) |
Electrical shock resistance | Class I conforms to IEC 61-140 and NF C 20-030 standards. | |
IP 66 conforms to iec 60529; IK 07 conforms to EN 50102- | ||
the protection grades | ||
repeatability | The direct-acting head performs 1 million operation cycles, and the trigger point accuracy is 0.01 mm | |
Cable entry hole or integrated connector | Depending on the model | M12 connector |
▊Product dimension diagram
LSXW-22-JZ | LSXW-22-JGL | LSXW-22-JGLY | LSXW-22-CJGLY | LSXW-22-YCSY |
 |  |  |  |  |
(1) For M20x1.5 or Pg13 cable sealing tube or 1/2"NPT conduit (2)06 rod, 200mm long. (3)282 is the largest, (4)190 is the maximum. (5)212 is the largest. 8:2 elongated holes, 05.3x7.3 | ||||
▊Trigger case diagram
