 | ·The light source of this product adopts visible semiconductor laser. Laser beams are prohibited from directly or indirectly reflecting from reflective objects into eyes. If the laser beam enters the eyes, it may cause blindness. ·This product is not equipped with explosion-proof structure. It is prohibited to use in flammable, explosive gas or explosive liquid environment. ·Do not disassemble or change this product, because it is not designed to automatically turn off laser emission when the machine body is opened. If the client dismantles or changes this product privately, it may cause personal injury, fire or electric shock. ·Using control, adjustment or operation steps other than those specified here may lead to dangerous radiation leakage. |

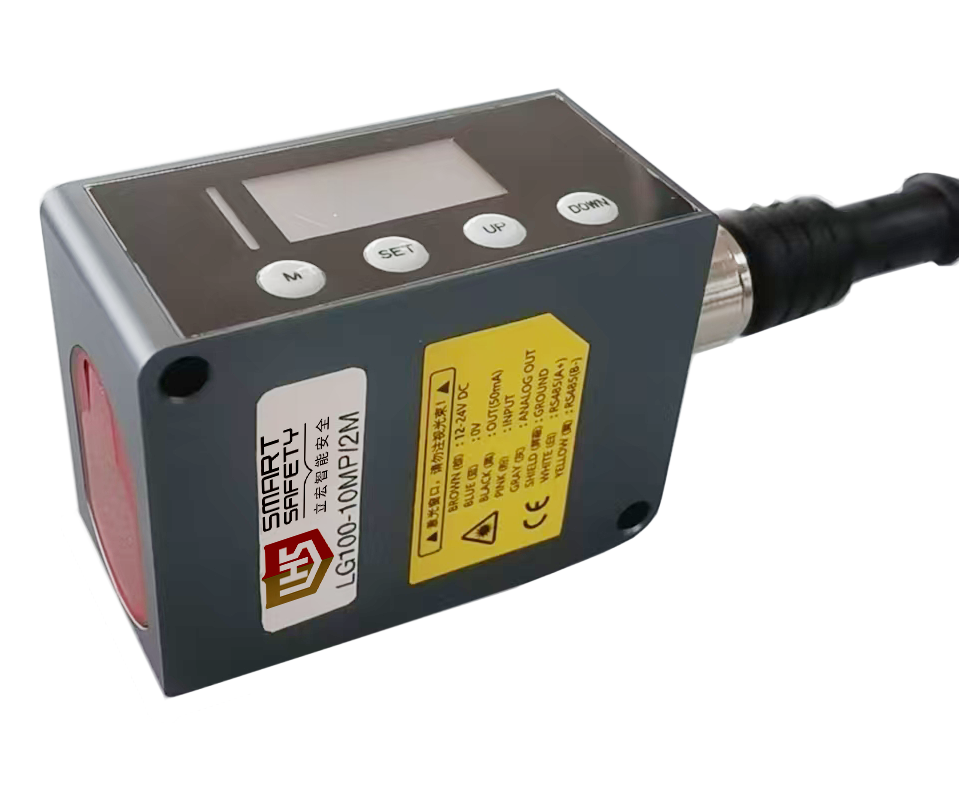

▊Number product selection table
product name | working distance | product model | output form |
LG100Series laser ranging sensor | 0.1m-1m | LG100-01MP/2M | PNP+analog quantity+485 |
LG100-01MN/2M | |||
NPN+analog quantity+485 | |||
LG100Series laser ranging sensor | 0.1m-2m | LG100-02MP/2M | PNP+analog quantity+485 |
LG100-02MN/2M | NPN+analog quantity+485 | ||
LG100Series laser ranging sensor | 0.1m-5m | LG100-05MP/2M | PNP+analog quantity+485 |
LG100-05MN/2M | NPN+analog quantity+485 | ||
LG100Series laser ranging sensor | 0.1m-10m | LG100-10MP/2M | PNP+analog quantity+485 |
LG100-10MN/2M | NPN+analog quantity+485 | ||
LG100Series laser ranging sensor | 0.1m-20m | LG100-20MP/2M | PNP+analog quantity+485 |
LG100-20MN/2M | NPN+analog quantity+485 | ||
LG100Series laser ranging sensor | 0.1m-50m | LG100-50MP/2M | PNP+analog quantity+485 |
LG100-50MN/2M | NPN+analog quantity+485 |
| ▊ | technical parameter |
resolution ratio | 1mm |
measurement error | ±(2mm+d* one ten thousandth)★ |
Laser type | Red semiconductor laser class Ⅱ laser 655 10 nm < 1mw |
Power supply voltage | 12V-24VDC±10%脈動P-P10% |
Consumption current | ≤50mA @24V |
Control output | NPN or PNP open-drain output |
Open drain collector transistor output | |
Maximum current: 50mA | |
Applied voltage: less than 30VDC | |
Residual voltage: less than 1.5V | |
Leakage current: less than 0.1mA | |
Output action | Normally open/normally closed can be switched. |
Short circuit protection | Automatic recovery type |
Analog voltage output | Output range: 0-5V (5.2V in case of alarm) |
Output impedance: 100 ohms | |
Analog current output | Output range: 4-20mA (0mA in case of alarm) |
Output impedance: 300 ohms max. | |
Reaction time | 50-200ms |
external input | NPN contactless input |
Protective structure | IP65 (IP67 can be used) |
Working temperature | -10℃~+45℃ (be careful not to condense or freeze) |
Storage temperature | -20℃~+60℃ |
Working humidity | 35%~85%RH |
Use ambient illumination | Incandescent lamp: Shouguang surface illumination below 3000lux. |
Use elevation | Below 2000m |
electric cable | 2m composite cable with 8 cores |
texture of wood | Aluminum parts |
quality | About 150g |
★:Represents the measured distance. In harsh environment, such as too strong sunlight, too large fluctuation of ambient temperature and dark reflection surface, the measurement results will have great errors. In this case, it is better to increase the use effect of the target reflector. | |
| ▊ | circuit diagram |
 |  |

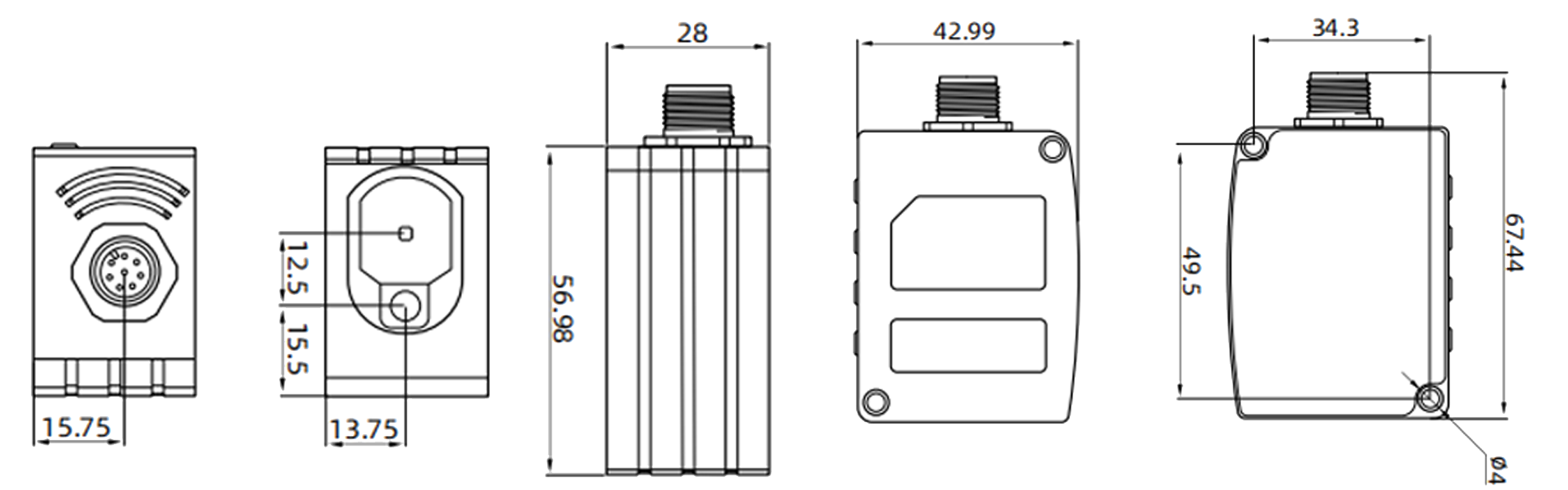

| ▊ | Product dimension diagram |
