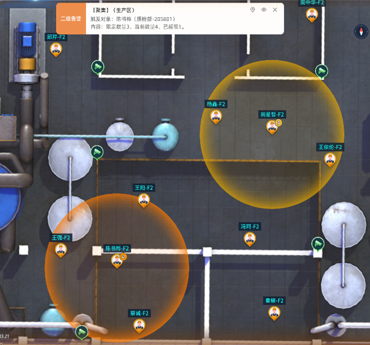

 | ·Risk zoning is divided into four-color maps, high-risk areas are managed according to authority, and high-risk operators are monitored in real time. ·Support real-time display of 2D/3D area, and carry out measurement collection according to the site. ·Set up an electronic fence according to the beacon map ·Real-time monitoring and management of operators ·Count the number of customers, supplier operators and production line operators. ·Real-time early warning and alarm |

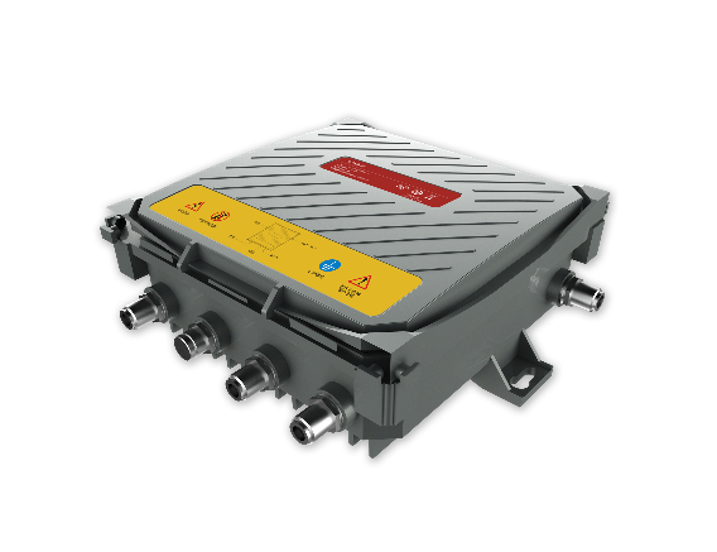

▊ Hardware composition: communication base station
| Optical fiber communication base station GXJZ-1000 | 4G communication base station GXJZ-1004 |
·Gas explosion protection: Ex ib IIC T4 Gb ·Dust explosion protection: Ex ib IIIC T130 Db ·Power supply voltage: 12Vdc, which is intrinsically safe. ·Transmission interface: single-mode optical fiber, supporting interface cascade. ·Coverage radius: ≥1km ·Protection grade: IP68 | ·Gas explosion protection: Ex ib IIC T4 Gb ·Dust explosion protection: Ex ib IIIC T130 Db ·Power supply voltage: 12Vdc, which is intrinsically safe. ·Wired communication: choose one of electric and optical ports, and support cascade connection. ·Wireless communication: 4G full netcom ·Coverage radius: ≥1km ·Protection grade: IP68 |
▊ Hardware composition: communication base station
High precision UWB beacon base station (explosion-proof) GXKZ-XB1(F) | Bluetooth beacon base station (explosion-proof) GXKZ-XB2(F) | Bluetooth beacon base station GXKZ-XB3 |
 | |  |
Gas explosion protection: Ex ib IIC T4 Gb Dust explosion protection: Ex ib IIIC T130 Db Working environment temperature: -40℃~85℃ Enclosure protection grade: IP68 Battery power supply: not less than 5 years Deployment mode: No wiring is required. Installation method: wall installation and pole-holding installation. Support outdoor harsh environment deployment Support APP rapid deployment and operation and maintenance. | Gas explosion protection: Ex ib IIC T4Gb Dust explosion protection: Ex ib IIIC T130 Db Power supply voltage: 12Vdc, which is intrinsically safe. Transmission interface: single-mode optical fiber, supporting interface cascade. Coverage radius: ≥1km Protection grade: IP68 | Working environment temperature: -20℃~60℃ Enclosure protection grade: IP65 (non-explosion-proof) Battery power supply: ≥5 years Replaceable battery: support (5th battery X2) Bluetooth protocol: BLE 5.0 and above Deployment mode: indoor wall and top surface installation Support APP rapid deployment and operation and maintenance. |

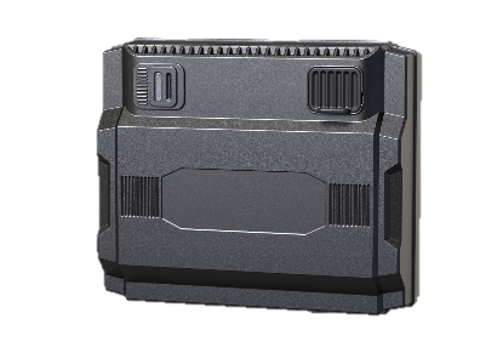

▊Hardware composition: positioning tag
| Positioning badge label GXKZ-BQ100 | Bluetooth beacon base station GXKZ-BQ102 | Bluetooth beacon base station GXKZ-BQ103 |
 |  |  |
Positioning mode: UWB+ Bluetooth fusion positioning. explosive-proof grade：Ex ib IIC T4 Gb Dust explosion-proof: Ex ibD A21 T135℃ Db transmission interface：Sub1G endurance：≥14sky Maximum positioning distance：100m the protection grades：IP68 SOSAlarm: Yes Built-in barometer height measurement Built-in NFC, support card function How to wear it: wear it with a lanyard or chest clip. | Positioning mode: UWB+ Bluetooth+satellite positioning. explosive-proof grade：Ex ib IIC T6 Gb Dust explosion-proof: Ex ib IIIC T80 Db the protection grades：IP68 Battery life: ≥14 days (light use, indoor positioning only) SOSAlarm: Yes. Screen display: Yes Interactive mode: physical keys Alarm reminder: sound+vibration Built-in triaxial acceleration sensor Built-in barometer assisted height measurement Built-in RFID supports all-in-one card function. Shell material: ABS+PC | Positioning mode: UWB+ Bluetooth+satellite positioning. explosive-proof grade：Ex ib IIC T4 Gb Dust explosion-proof: Ex ib IIIC T135 Db the protection grades：IP68 Battery life: 5 days (light use only indoor positioning) Screen display: LCD color HD screen. Interactive mode: touch screen Heart rate monitoring: Yes. Blood itching monitoring: Yes. Temperature monitoring: Yes. Alarm reminder: sound+vibration Built-in barometer assisted height measurement Built-in triaxial acceleration sensor Built-in RFID supports all-in-one card function. Case material: ABS+PC Strap material: silicone |
▊Application scenario
Outdoor vehicle and visitor positioning: GPS positioning, UWB and Bluetooth two-dimensional and one-dimensional positioning. | |||
Indoor and outdoor positioning of people and things: three-dimensional, two-dimensional, one-dimensional and zero-dimensional. | |||
 |  |  |  |
