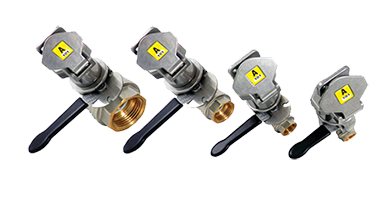

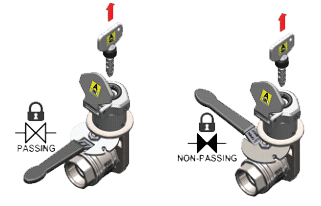

 | Miniature valve locks can be used alone or as a key solution process They can lock the open or closed state of the device valve Protect operators from gas damage IP67 protection grade, high waterproof performance, can withstand high pressure steam cleaning Stainless steel and metal die casting materials are optional |
Type selection
Product category | Keyless type stainless steel | Keyless off stainless steel | Keyless type Metal die casting | Keyless off Metal die casting |
model | SWS-KOP | SWS-KCL | SWD-KOP | SWD-KCL |
Explanation | Please refer to the detailed selection | |||
Product technical description
SW key mechanical valve lock Working temperature: -40C-+170C Pressure limit: 40Bar (600 [psi) 5 optional connection sizes Threaded joint Warning: The installed fluid may seriously damage the valve |  |
All 316 stainless steel Apply to perishable material selection Easy to clean after long use |
|
Stainless steel material selection specifications
product name | model | Technical Description | Open |
Key valve lock | SWS-KOP-1/4 | Stainless steel microvalve lock 1/4" 6.35mm | Keyless opening |
SWS-KOP-3/8 | Stainless steel micro valve lock3/8“ 9.525mm | ||
SWS-KOP-1/2 | Stainless steel micro valve lock1/2“ 12.7mm | ||
SWS-KOP-1 | Stainless steel micro valve lock1“ 25.4mm | ||
SWS-KOP-2 | Stainless steel micro valve lock2“ 50.8mm | ||
Key valve lock | SWS-KCL-1/4 | Stainless steel micro valve lock1/4“ 6.35mm | Keyless off |
SWS-KCL-3/8 | Stainless steel micro valve lock3/8“ 9.525mm | ||
SWS-KCL-1/2 | Stainless steel micro valve lock1/2“ 12.7mm | ||
SWS-KCL-1 | Stainless steel micro valve lock1“ 25.4mm | ||
SWS-KCL-2 | Stainless steel micro valve lock2“ 50.8mm | ||
Remarks | |||
Die Cast Metal Valve Lock
|
|
Specification for selection of metal die-casting materials
product name | model | Technical Description | Open |
Key valve lock | SWD-KOP-1/4 | Metal die-casting micro valve lock1/4“ 6.35mm | Keyless opening |
SWD-KOP-3/8 | Metal die-casting micro valve lock3/8“ 9.525mm | ||
SWD-KOP-1/2 | Metal die-casting micro valve lock1/2“ 12.7mm | ||
SWD-KOP-1 | Metal die-casting micro valve lock1“ 25.4mm | ||
SWD-KOP-2 | Metal die-casting micro valve lock2“ 50.8mm | ||
Key valve lock | SWD-KCL-1/4 | Metal die-casting micro valve lock1/4“ 6.35mm | Keyless off |
SWD-KCL-3/8 | Metal die-casting micro valve lock3/8“ 9.525mm | ||
SWD-KCL-1/2 | Metal die-casting micro valve lock1/2“ 12.7mm | ||
SWD-KCL-1 | Metal die-casting micro valve lock1“ 25.4mm | ||
SWD-KCL-2 | Metal die-casting micro valve lock2“ 50.8mm | ||
| Remarks | |||
Mechanical valve lock specifications
|
|

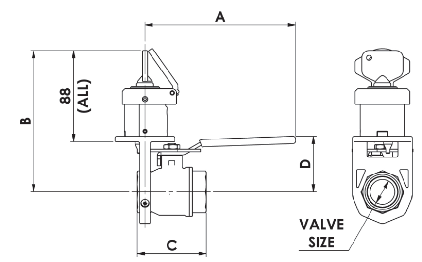

Installation size selection specifications
Product number | A（mm） | B(mm) | C(mm) | Connection size |
SWS-KOP-1/4 SWS-KCL-1/4 SWD-KCL-1/4 SWD-KCL-1/4 | 96 | 125 | 39 | 0.25 INCH |
SWS-KOP-3/8 SWS-KCL-3/8 SWD-KOP-3/8 SWD-KCL-3/8 | 96 | 125 | 39 | 0.375 INCH |
SWS-KOP-1/2 SWS-KCL-1/2 SWD-KOP-1/2 SWD-KCL-1/2 | 118 | 129 | 50 | 0.5 INCH |
SWS-KOP-1 SWS-KCL-1 SWD-KOP-1 SWD-KCL-1 | 146 | 137 | 67 | 1 INCH |
SWS-KOP-2 SWS-KCL-2 SWD-KOP-2 SWD-KCL-2 | 202 | 161 | 106 | 2 INCH |
| Remarks | ||||
