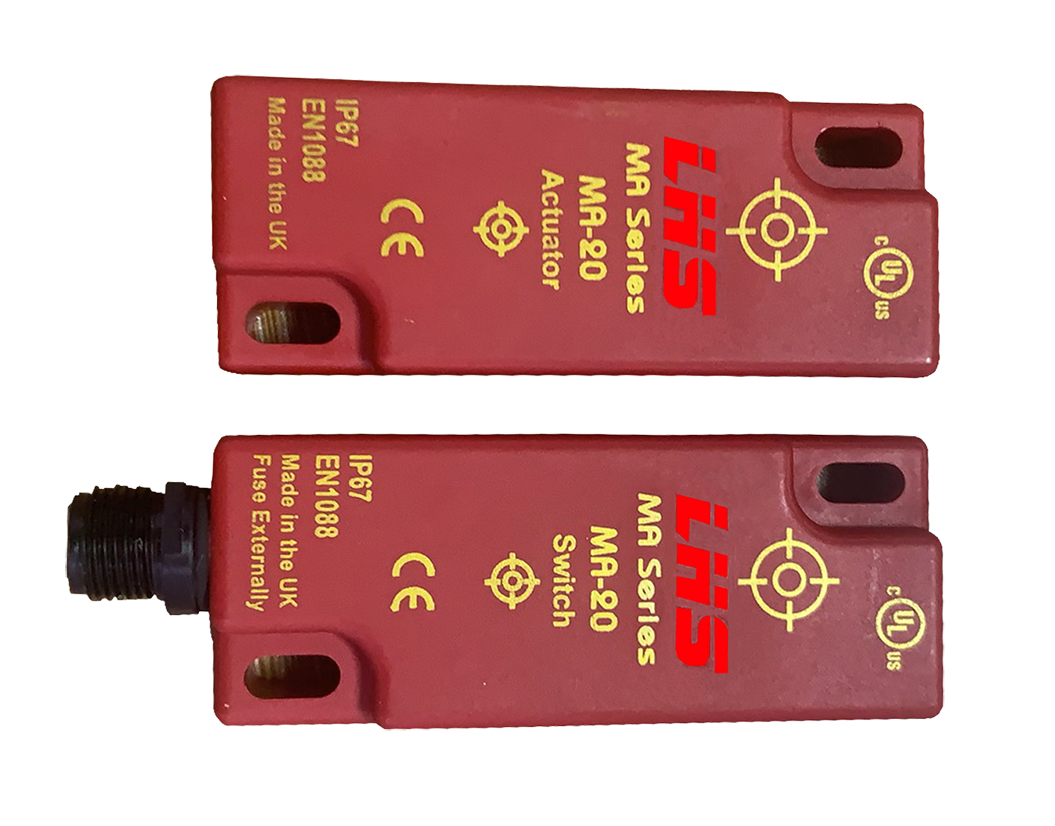

Coded Non Contact Switches
 |
|
| Type selection |  |
Product category | Coding type | Magnetic type | RFID type | Pharmaceutical food grade |
model | SCP | SCR | SWP | SRM-RMC SWM-WMC |
Contact configuration | 2N/C+1N/O | 2N/C+1N/O 2N/C 1NC+1N/O 1N/C | 2N/C+1N/O | 2N/C+1N/O |
Explanation | Multiple selection modes | |||
Product technical description
| |
Packaging industry Food industry machine tool robot Pharmaceutical Industry Other manufacturing industries |  |

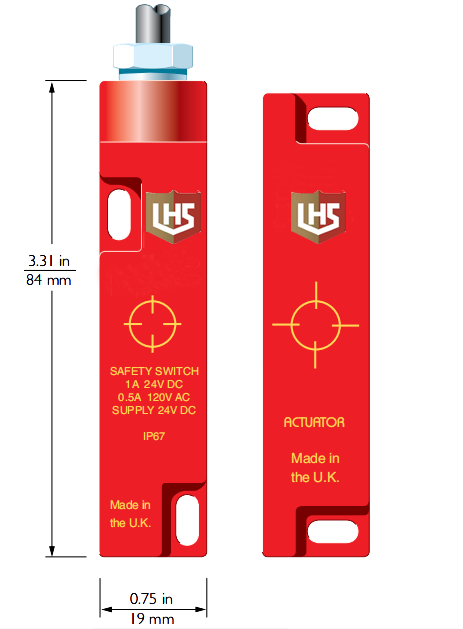

SCR selection specifications
Product number | Current and voltage | Contact | Cable | Order number |
SCR-022 | (24 VAC/DC) | 2N/C | 2M | |
SCR-025 | (24 VAC/DC) | 2N/C | 5M | |
SCR-0210 | (24 VAC/DC) | 2N/C | 10M | |
SCR-0221 | (24 VAC/DC) | 2N/C+1N/0 | 2M | |
SCR-0251 | (24 VAC/DC) | 2N/O+1N/C | 5M | |
SCR-0211 | (24 VAC/DC) | 2N/O+1N/C | 10M | |
SCR-012 | (230 VAC) | 1N/C | 2M | |
SCR-015 | (230 VAC) | 1N/C | 5M | |
SCR-0110 | (230 VAC) | 1N/C | 10M | |
SCR-012 | (230 VAC) | 1N/C+1N/O | 2M | |
SCR-015 | (230 VAC) | 1N/C+1N/O | 5M | |
SCR-0110 | (230 VAC) | 1N/C+1N/O | 10M | |
Remarks | ||||
standard: | ISO14119 EN60947-5-1EN60204-1 ISO13849-1 EN62061 UL508 |
Mechanical reliability: B10d | 3.3 x 106 running ISO13849-1 under 100mA load, according to system architecture, up to Ple EN62061 to SIL3 depends on the system architecture |
Safety data | 8 times per year / 24 hours a day / 365 days Full HD 2.52 x 10-8 |
MTTFD | (Life) 47 years MTTFD470 years |
Safe channel 1 NC | 250Vac 2.0A maximum rating |
Safe channel 2 NC | 250Vac 2.0A maximum rating |
Safe channel 3 NC | Maximum rating 24Vdc 0.2A |
Contact release time | <2ms |
Minimum switching current | 10Vdc 1mA |
Main material | Certified polyester |
Operating temperature | -25C+80C |
Enclosure rating | IP69K（NEMA PW12）IP67（NEMA 6） |
Impact resistance | IEC68-2-27 11ms 30g |
Vibration resistance | IEC68-2-6 10-55Hz 1mm |
Cable type | PVC 6 core 6mm OD conductor 0.25mm2 |
Safety circuit module
 |
|
product name | model | Safe input3CH | Output | Order number |
Safety Relays | SR103 series | 1 set of security products | 3N/O+1N/C | See product information for details |
Safety Relays | SR301 series | 3 set of security products | 2N/O | |
Safety Relays | SM601 series | 6 groups of safety products | 2N/O+4Tr | |
Explanation | ||||
