| ·Pulse lidar, 62×64×84mm in shape, convenient for user integration. ·Pulse TOF nanosecond narrow pulse technology, stable and reliable measurement, a kind of laser product, safe for human eyes. ·Ultra-fast scanning speed, 25,000 times in one second, and 40ms scanning time in a single lap. ·Industrial design, stable and reliable: IP65, dedicated temperature drift error elimination design, professional EMC design and rigorous testing, ambient light and impact vibration testing. ·The detachable window design facilitates maintenance, reduces maintenance costs and prolongs the service life of products. ·Up to 16 groups of definable detection areas. The detection area can be defined as any complex and irregular shape according to the needs of users. |
| ▊ | Product specification |
product model | Maximum detection range | Detection accuracy | Scanning angle | output form |
NJ301-0670P | 6 Meter @ 70% reflectivity | ±4cm@1sigma | 270° | PNP |
NJ301-1070P | 10 Meter @ 70% reflectivity | ±4cm@1sigma | 270° | PNP |
NJ301-2070P | 20 Meter @ 70% reflectivity | ±4cm@1sigma | 270° | PNP |
NJ301-0210N | 2 Meter @ 10% reflectivity | ±4cm@1sigma | 270° | NPN |
NJ301-0410N | 4 Meter @ 10% reflectivity | ±4cm@1sigma | 270° | NPN |
NJ301-0810N | 8 Meter @ 10% reflectivity | ±4cm@1sigma | 270° | NPN |
安裝方式 | Horizontal installation mode (SZ), vertical installation mode (CZ) and protective cover installation mode (FZ) | |||
電源線 | 5M give/present as a gift | |||
編程線 | give/present as a gift | |||
說明 | ||||
Laser scanner main body
| Power cord
| Programming line
|
| ▊ | technical parameter |
optical characteristics | |||
Laser light source | Wavelength 905nm, a kind of laser products. | ||
Maximum detection range | Radius 20m@70％% reflectivity (white object) Radius 8m @ 10% reflectivity (black object) | ||
Scanning angle range | 270° | Angular resolution | 0.5° |
measurement error | ±4cm | ||
Electrical/mechanical parameters | |||
operating voltage | DC9V～DC30V | ||
Power-on start time | typical value6s | ||
power consumption | 3W（typical value） | ||
output | OUTPUT1：Zone 1 enters the OFF state when it detects an obstacle. OUTPUT2：Sector 2 enters the OFF state when it detects an obstacle. OUTPUT3：Obstacle/system failure detected in sector 3. (optional, configurable), enter the OFF state. | ||
outline dimension | 62mm×64mm×81mm | ||
Cable length | ≤30m | ||
Environmental characteristics | |||
ambient temperature | Work:-10℃ ~ 50℃ (no frost and fog) save：-40℃～70℃ | ||
ambient humidity | work：35%RH～85%RH save：35%RH～95%RH | ||
Anti-light interference | 15000Lux | ||
resist the impact | Acceleration 10g；; Pulse duration：16ms； Collision times: three axes, each axis1000±10 次 | ||
Vibration resistance | Frequency 10 Hz ~ 55 Hz; amplitude：0.35±0.05mm； Scanning times: three axes, each axis20 次 | ||
the protection grades | IP65 | ||
electromagnetic compatibility Sex (EMC) | EMI | EN61326-1：2013 EN55011：2009+A1:2010 | |
EMS | EN61326-1：2013 EN61000-4-2：2009 EN61000-4-3：2006+A1:2008+A2:2010 EN61000-4-4：2004+A1:2010 EN61000-4-6：2009 EN61000-4-8：2010 EN61000-4-11：2004 | ||
Configurable function | |||
Sector configuration | Users can configure NJ300 series defense zones to the required shape through configuration software. | ||
Response time | Adjustable (40ms/ lap) | ||
Zone group switching | Group external input signals (Z1, Z2, Z3, Z4) realize 16 regions. When switching groups, the default zone group 15 will work when Z1, Z2, Z3 and Z4 are not connected. | ||
work pattern | NJ300 series provides four working modes, and the default working mode is 4. | ||
| ▊ | technical parameter |
 | sign | meaning | describe |
3 | User-configured sector3 | OUTPUT3 enters the OFF state when an obstacle is detected. | |
2 | User-configured sector2 | OUTPUT2 enters the OFF state when an obstacle is detected. | |
1 | User-configured sector1 | OUTPUT2 enters the OFF state when an obstacle is detected. | |
NL300series | laser radar | Scanning angle 270, radius 10m @ 70% reflectivity, radius 8m @ 10% reflectivity. |
| ▊ | Product dimension diagram |
|
| ▊ | hookup |
 |  |
PNP Output form wiring diagram | NPN Output form wiring diagram |
| ▊ | hookup |

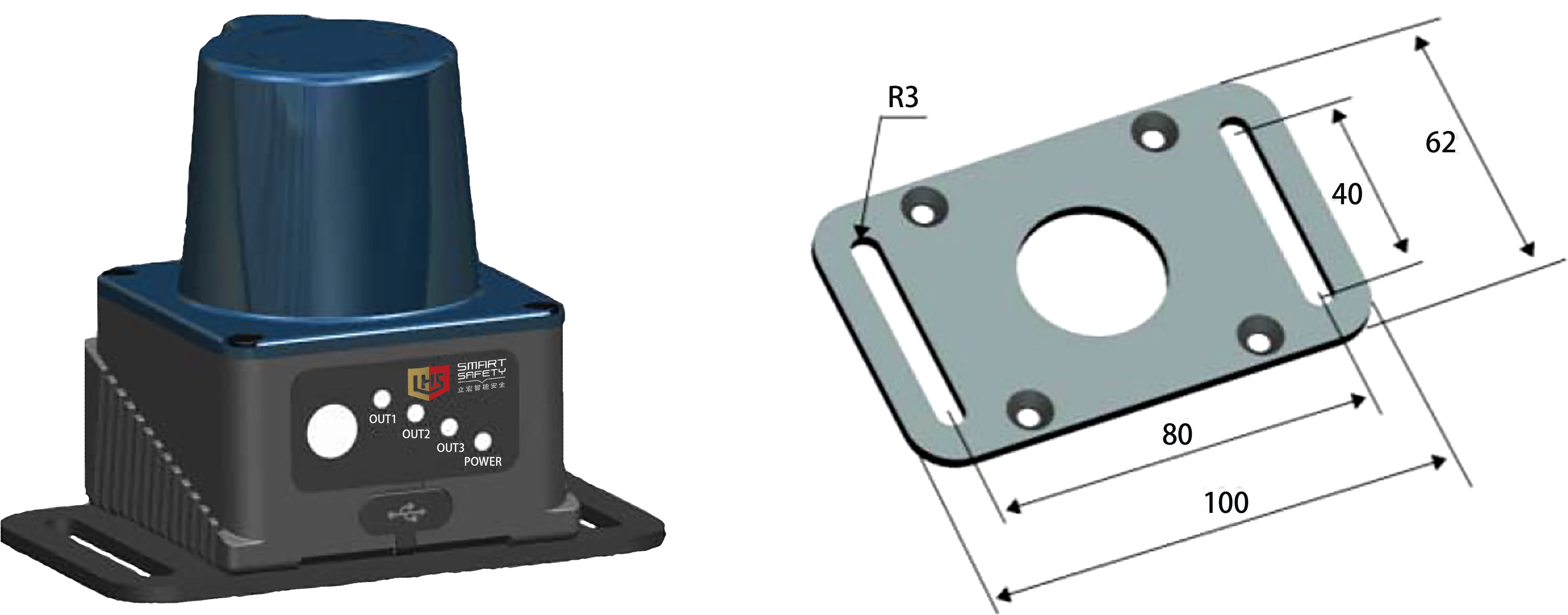

| Horizontal installation mode |  |

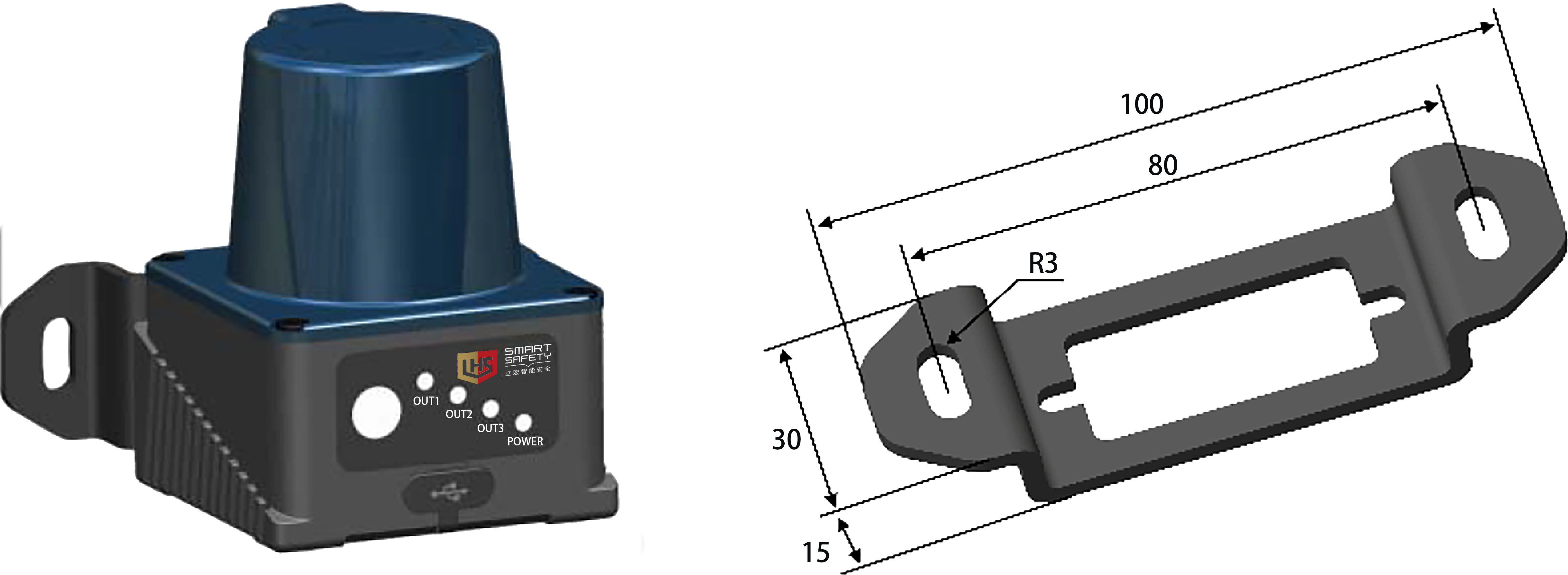

| Vertical installation mode |  |

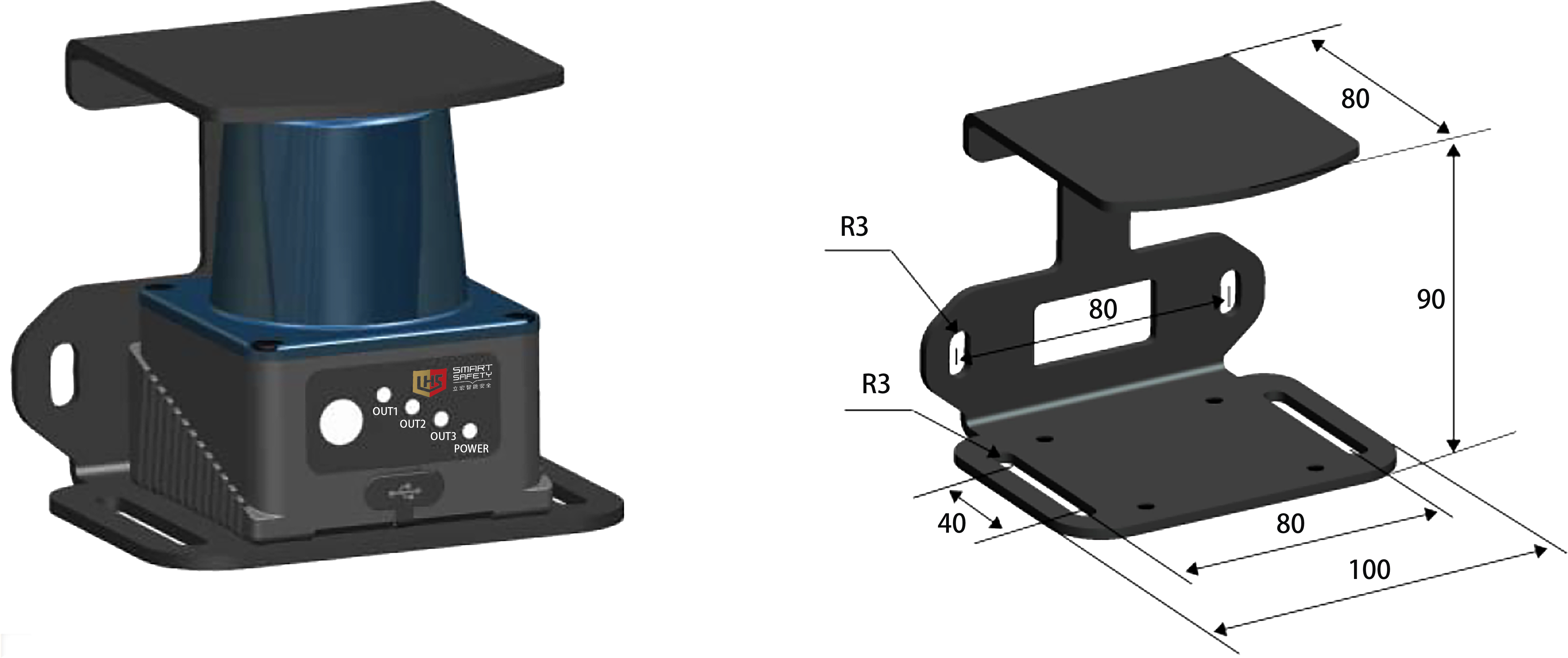

Vertical installation mode |  |
