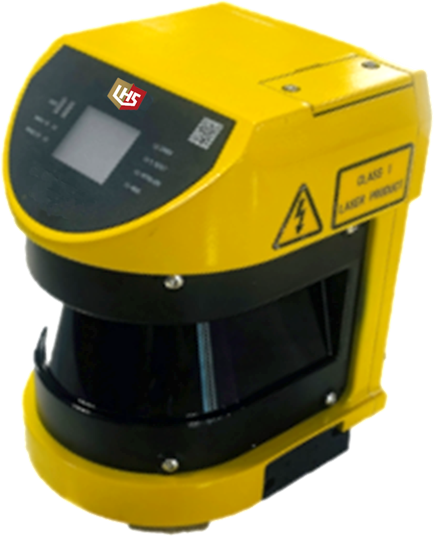

| · OLM 4201 lidar is based on the principle of pulsed laser ranging. · The angle of 200 is realized by rotating scanning. · The protection distance of 4.2m is adjustable. · Support users to customize 16×3 groups of sectors with different shapes, and output safely. · Can provide functional safety output. |
| Product introduction |
· Provide real-time hazardous area detection · Irregular safety detection and protection up to 4.2m. · Obstacle avoidance can be set according to the site environment. · Used in stop equipment that can safely output. |
|

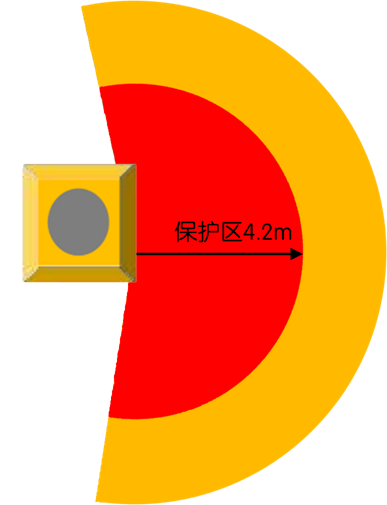

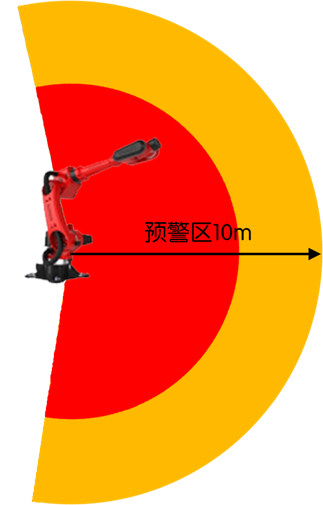

| Early warning area · Obstacle avoidance can be set according to the site environment. · Used in stop equipment that can safely output. |
| specifications and models |

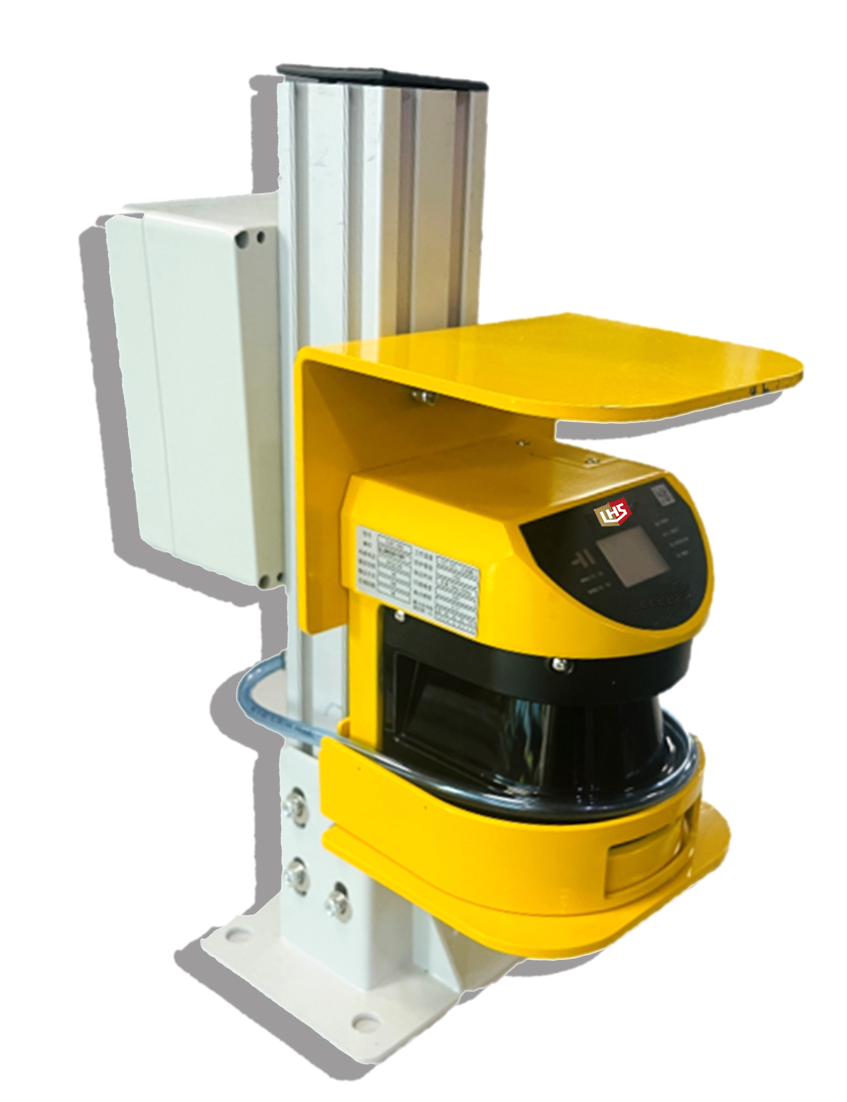

Vertical floor support
product name | model | Detection radius | Scanning angle | output form |
Safety laser scanner | OLM4201series | 4m@1.8%reflectivity | 200° (-10°~190°) | PNP |
OLM4201-ZJ40 | Protect the bracket horizontally and implement the installation bracket. | |||
Power cord | 5Mgive/present as a gift | Clean the dust such as metal from the mirror surface. | ||
Programming line | give/present as a gift | |||
explain | ||||

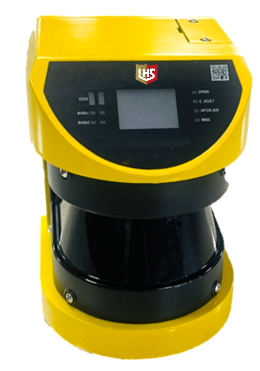

Laser scanner main body
| Floor mounting bracket
| Power cord
| Programming line
|

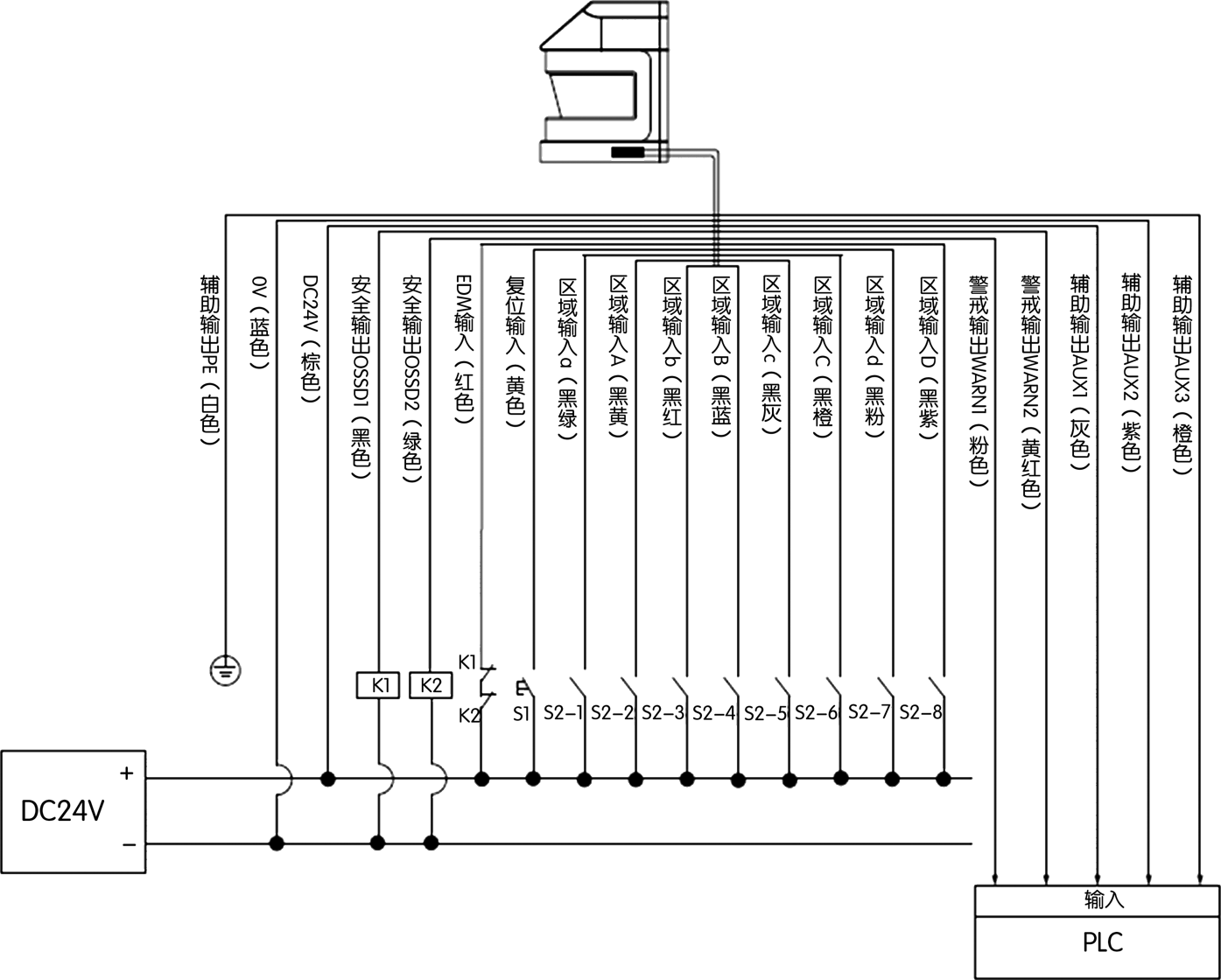

| Typical wiring diagram |
| technical parameter |
General necessary added value of protected areas

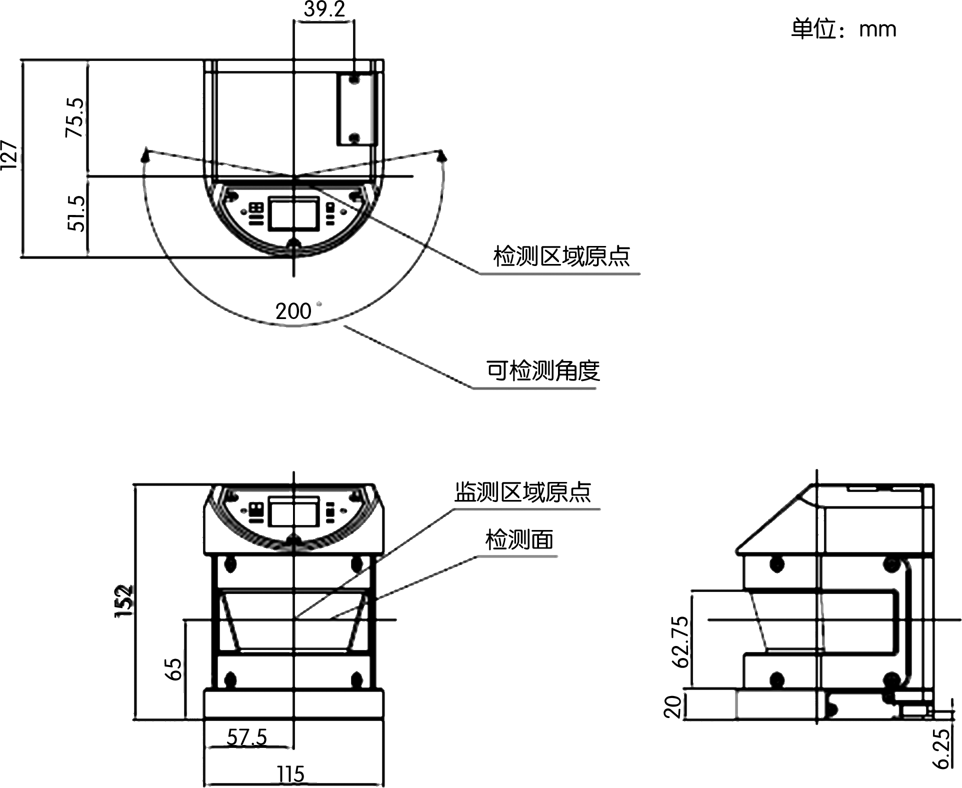

Optical characteristics | |||
Laser light source | Wavelength 905n, a kind of laser products. | ||
Detection radius | Radius 10m@20% reflectivity | ||
Scanning angle range | 200°(-10°~190°) | Angular resolution | 0.5° |
reflectivity | minimum1.8% | ||
100mm | |||
Distance between the origin of the scanning plane and the lower edge of the housing | 65mm | ||
Electrical/mechanical parameters | |||
operating voltage | DC24V（±10%） | ||
power consumption | 8s（typical value） | ||
Number of scanning laps | 8W（typical value） | ||
scan period | PNPOutput+Ethernet output | ||
Response time | 100×100×115mm | ||
Safe output | Two-way transistor push-pull output (PNP or NPN), load current 200mA, residual voltage below 1.4V V. | ||
Warning output | Two-way transistor push-pull output (PNP), load current 200mA, residual voltage below 1.4V | ||
Auxiliary output | Transistor output (NPN), load current 200mA, residual voltage below 1.4V v. | ||
Diagnostic coverage rate | 99% | ||
Mean time to failure without danger | 200a | ||
Environmental characteristics | ||
ambient temperature | Work:-10℃ ~ 50℃; Storage: -25℃~60℃ | |
ambient humidity | RH≤85% (no ice and condensation) | |
Optical interference | Incandescent lamp 60000lx | |
lash | EN 61496-1:10gAcceleration, 16ms pulse duration, 1000 10 collisions on each of the three axes. | |
vibrate | En 61496-1: frequency range of 10-55hz, scanning speed of 1 octave/minute, amplitude of 0.35±0.05mm, 20 scans/axis, 3 axes. | |
the protection grades | IP65 | |
shell | aluminium alloy | |
window | PC | |
meet a criterion | EN 61496-1、EN 61496-3、EN ISO 13849-1、EN 61508、EN 62061、EN 60825 | |
| outline dimension |
